Quick Details

  • Condition: New
  • Automatic Grade: Automatic
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SUNTECH
  • Model Number: ST-BM-02
  • Voltage: 3Phase-380V;50HZ (Adjustable)
  • Power(W): kw
  • Dimension(L*W*H): 4800x3100x3000mm(for model ST-BM-02-180 only)
  • Weight: 1250kgs(for model ST-BM-02-180 only)
  • Certification: CE, ISO 9001
  • Warranty: 13 Months
  • After-sales Service Provided: Overseas third-party support available
  • Machine: SUNTECH Textile Inspection Function Fabric Batching Machine
  • Speed: 5-40m/min
  • Fabric Width: 1.8-4.0m
  • Max. Un-winding Diameter: 1800mm
  • Max. Re-winding Diameter: 1800mm

Packaging & Delivery

Packaging Details Steel Pallet or Wooden Box Packing For SUNTECH Textile Inspection Function Fabric Batching Machine
Delivery Time 15-20 days
Product Description

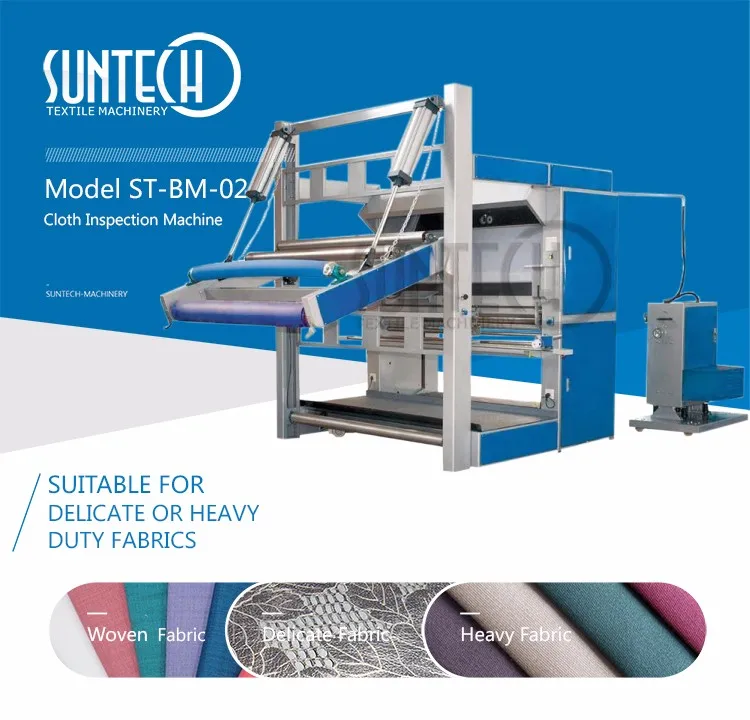

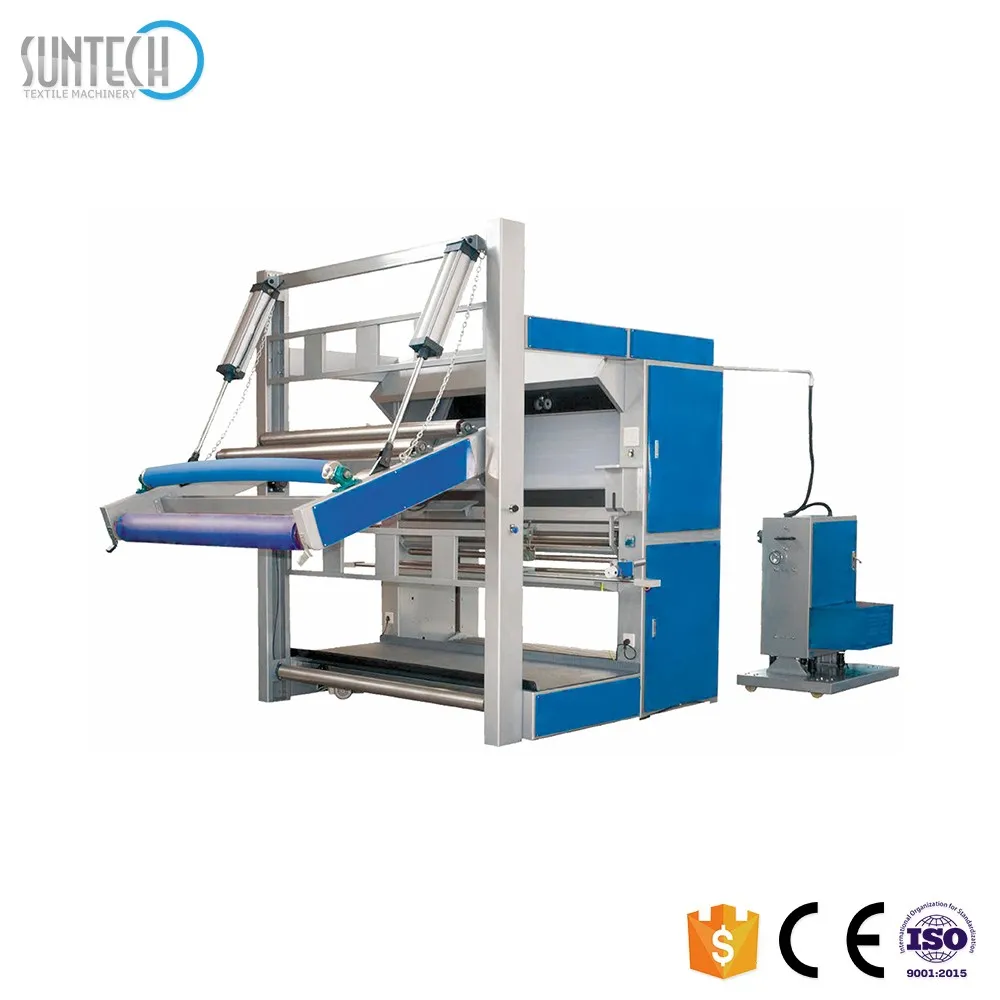

SUNTECH Textile Inspection Function Fabric Batching Machine

  ST-BM-02 is suitable for a wide range of fabrics, especially for continuous process "A" frame batch and de-batch. This machine can provide synchronized fabric input or output to "A" frame with constant tension control, with peripheral fabric contact for delicate or heavy duty fabrics.

Technical Specs.

Type
Fabric Batching Machine (A-frame to A-frame) (ST-BM-02)
Speed
5-40m/min
Fabric Width
1.8-4.0 meters
Max. Un-winding Diameter
1800mm
Max. Re-winding Diameter
1800mm
Dimensions(LxWxH)
4800x3100x3000mm(for model ST-BM-02-180 only)
Weight
1250kgs(for model ST-BM-02-180 only)
Electric Specs
3phase-380V; 50HZ(can be adjusted to suit for different countries)
Remark
Variable working width is possible and can be tailor-made to your requirements of processing needs.
Advantage
*Ergonomically designed

*Fast and easily handle,requiring for one operator only

*Improve fabric quality

*Synchronize production process

*Provide objective quality reporting

*Reduce administration
Detailed Images

Metallic Paint( used for Luxury Imported Cars):

* A Seriously Cool Effect-- Glimmer and Sparkle.

* More Resistant to Fading--Longevity

* More Hardness than Ordinary Paint--Protect From Damage or Scratches

Top & Bottom Lights: LED Lights

* Long Life--Ordinary Light Average 1000-20000 hours, LED light 50000 hour life

* Energy Efficiency--Save 80% than Ordinary Lights

* Ecologically Friendly--Green Solution

* Zero UV Emissions

* Operational in Extremely Cold or Hot Temperatures

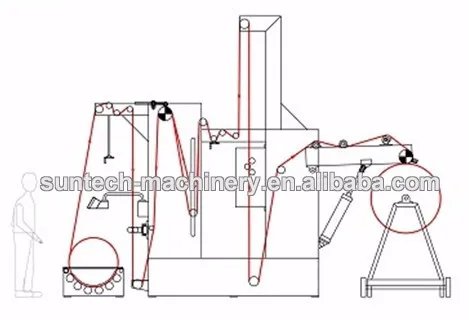

ST-BM-02 (With Direct Centre Driven System)--Big Batch to A-Frame

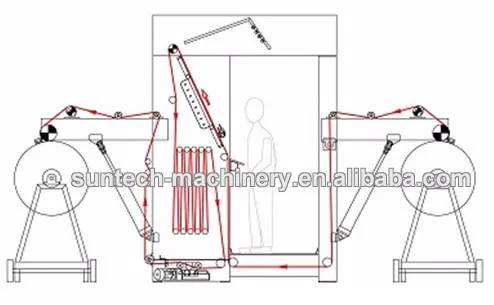

ST-BM-03 Batching Machine (Batch to Batch )

Continuous process "A" frame batch and de-batch rolling machine, synchronised fabric input or output to "A" frame with constant tension control, with peripheral fabric contact for delicate or heavy duty fabrics.

Optional systems are available for different fabric input and output presentations, continuous fabric input and plait input or output.

ST-BM-04 Batching Machine (Big Roll to Small Roll/Big Roll)

Surface winding and re-winding rolling machine for continuous process fabrics from big roll to small roll / big roll, with constant tension control, ideal for heavy duty fabrics.

Optional systems are available for different fabric input and output presentations, continuous fabric input and plait input or output.

ST-BM-05 Batching Machine (Plaited Fabric/Small Roll to Bacth)

Continuous process fabrics from plait or small roll to "A" frame with constant tension control, with peripheral fabric contact for delicate or heavy duty fabrics.

Optional systems are available for different fabric input and output presentations, continuous fabric input and plait input or output.

Excellent Features

1) Direct Centre Drive System & Surface Contact Peripheral Drive Roller with Pneumatically Controlled Arm----especially ideal for checking delicate or heavy duty fabrics.

2) Fabric Input, Output Synchronized- for Tensionless Roll up----Speed is controlled by an adjustable light accumulation rollers for automatic fabric synchronisation.

3) Full Width Fabric Inspection - with 60 Degree Fixed Angle Inspection Screen-----Fabric can be checked under the aid of different viewing and lighting options.

4) Accurate Fabric Length Measuring--- Fabric roll length can be taken by industrial standard measuring systems with digital readouts to give consistent fabric roll assessments.

5) Stable Running & Easy Operation-----The whole machine is controlled by PLC and the machine can be easily operated with optional Touch Screen.

6) Simple Fabric Control With Bow/ Banana Roller to eliminate fabric creasing and roll distortions.

7) Versatile Fabric Input and Output Options - Synchronize with Other Production Operations-----Optional systems are available for different fabric input and output presentations, continuous fabric input and plait input or output.

8) Data Collection and Analysis System ( 4-point System) ---- Optional 100% fabric inspection with software for accurate fabric roll analysis and printout.

9) Sampling - Optional----Fabric sample can be taken by automatic linear cutter and the rest fabric can be stitched by automatic sewing machine for on going checking.

Packing & Delivery

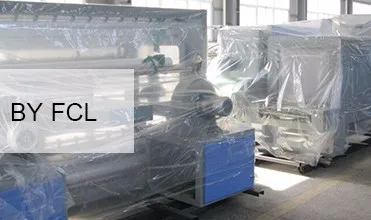

Shipped by FCL

Steel pallet + Stretching Film Packing

Shipped by LCL

Wooden Box Packing

FAQ:

Q1: Are you a trading company or manufacture?
A1: SUNTECH is a professional manufacturer with experience over 40 years. Now we have brand office in HK

       and International sales office in Hangzhou(Hangzhou Strength Machinery Co.,Ltd).

       Your order will be controlled from very beginning to the last.


Q2: What is your delivery time?
A2: Normally 15-20 days upon order confirmation.

Q3: What is your packing pattern?
A3: For FCL, steel pallet + stretch film covering.
       For LCL, steel frame + wooden box packing.

Q4: How about your service?
A4: Round the clock customer service center- 24 hours hot line--13706812486.
       Also, engineers available to service machinery overseas

Q5: How about your product?
A5: SUNTECH has the standard production and complete quality control system to ensure high quality products.

       Our products get ISO9001:2008, Euro CE.

Our Clients
About Us
SUNTECH is one of the leading designers & manufacturers on textile machines for weaving & finishing units, especially for Fabric Make-up Machines and Material Storage & Handling Equipment.

Over 40 years experience, SUNTECH now has its brand office in HK and International sales office in Hangzhou. In addition, our factory is located in Ningbo city, Zhejiang, China.

Today,with more than 2500 customers and 6000 installations around the world, SUNTECH now has its agent network in Italy, Germany, Russia, Argentina, Colombia, Peru, Ecuador, Guatemala, Indonesia, Thailand, Philippines, India, Pakistan, Bangladesh, Sri Lanka, Uzbekistan, Iran,Egypt, South Africa, Syria, Mauritius, etc.
