SUNTECH Tension Control Knitted Fabric Inspection checking table Machine

FOB Reference Price:Get Latest Price
US $5,500-10,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Report Suspicious Activity
Quick Details
Automatic Grade:
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
3 KW
depend on different modles
follow actual situation
ISO 9001:2008
13 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Knitted Fabric Inspection Machine
Fabric Width:
1.8-4.0 Meters
Standard Roll Diameter:
500 mm .
Variable with width is possible
Supply Ability
Supply Ability:
100 Set/Sets per Month Knitted Fabric Inspection Machine
Packaging & Delivery
Packaging Details
Steel Pallet or Wooden Box Packing For SUNTECH Textile Tension Control Knitted Fabric Inspection Machine
Product Description

Product Application

SUNTECH Textile Tension Control Knitted Fabric Inspection Machine with optional data collection and analysis system(4-point system) to handle a wide range of fabrics, from tension-sensitive elastomeric and lycra fabrics to stable woven, technical and upholstery materials.

This machine can be supplied to operate from plait/loose fabrics to roll, or with various other fabric inlet or outlet options.

*Ergonomically designed
*Fast and easily handle,requiring for one operator only
*Improve fabric quality
*Synchronize production process
*Provide objective quality reporting
*Reduce administration SUNTECH Knitted Textile Testing Table with 4-Point System Made in China

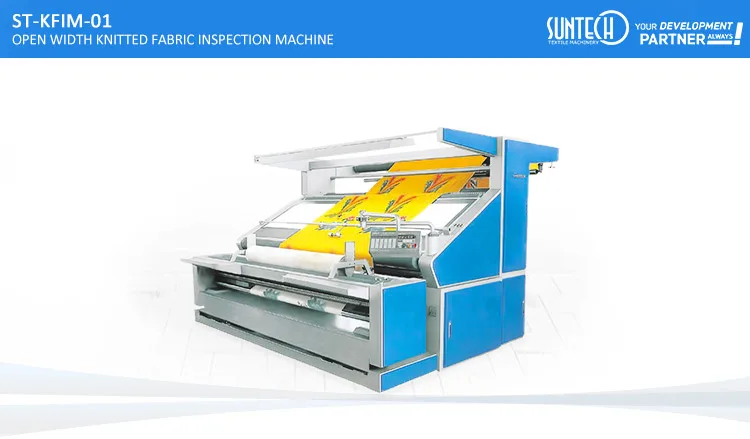

ST-KFIM Textile Tension Control Knitted Fabric Inspection Machine
Fabric Width
Standard Roll Diameter
3300x3100x2000mm(for model ST-KFIM-260 only)
1550kgs(for model ST-KFIM-260 only)
Electric Specs
3Phase-380V; 50Hz(can be adjusted to suit for different countries)
Variable working width is possible and can be tailor-made to your requirements of processing needs.
Detailed Images

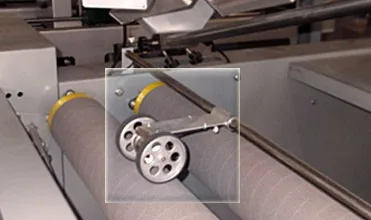

<< Active Unwinding - tension control

Twin unwinding rollers are driven by motor, help fabric roll active unwinding. To avoid damage or tension caused by passive pull.

Fabric End Stop Sensor >> -efficiency

It will allow for continuous fabric inspection, from one piece of roll to next, no need to feed fabric again.

<< Dancing Roller - tension control

It will move up and down to control tension, ensuring speeds of feeding, inspecting and re-winding synchronized.

Full Width Fabric Inspection >> -tension control

60 degree fixed angle inspection screen which has been verified thousand times with the least influence for fabric tension. It is the most suitable angle for knitted fabric.

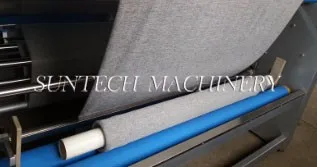

<< Scroll Roller - curled edge control

- 03 sets of Scroll Roller &  01 set of Air-blowing device

1. Before inspection table, the scroll roller will make fabric open totally when inspection.
2. After inspection, the scroll roller will open fabric curled edges again to make sure a accurate edge-align.
3. Before rewinding, the scroll roller & Air-blowing device will once more open fabric and eliminate crease for perfect roll generation.

Digital Counter Meter >>

- Unit Meter(M) and Yard(YD) optional

- Error less than 0.1m/km

- Pre-set length available

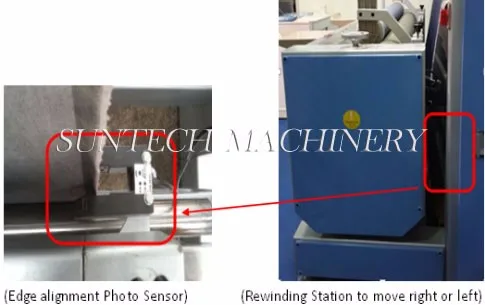

<< Edge-alignment Sensor

align the fabric edges accurately. When fabric declines, the rewinding station will move left or right for aligning.

Twin Rewinding Roller >>

Consistent roll output by actively surface rewinding with twin rubber-covered roller.
The roll compact could be adjust due to different ratio of the rollers. You could adjust the roll hardness (Loose or Tight) through the hand-wheel.

Excellent Features of SUNTECH Textile Tension Control Knitted Fabric Inspection Machine

1) Low Tension Fabric Delivery and Speed Synchronization Unique mechanical and electric device combination for making fabric feeding, delivering and re-winding synchronous.

2) Full Width Fabric Inspection - with 45 Degree Fixed Angle Inspection Screen Fabric can be checked under the aid of different viewing and lighting options.

3) Accurate Fabric Length and Optional Weighing Machine. Fabric roll length and weight can be taken by industrial standard measuring systems with digital readouts to give consistent fabric roll assessments.

4) Stretch Fabric Control - with Scroll Roller System and De-curling System. Fabric controlled from input to electro/ pneumatic edge guilding system for perfect roll generation.

5) Consistent Roll Output - with Twin Rewinding Roller and Roll Hardness Adjustment Processed rolls are rewound with the minimum amount of tension and are consistent from roll to roll.

6) Versatile Fabric Input and Output Options - Synchronize with Other Production Operations Optional systems are available for different fabric input and output presentations, roll to roll, continuous fabric input and plait input and output.

7) Pneumatic Roll Ejection Device - Optional Heavy produced rolls can be pushed by the pneumatic cylinder arms so as to save labour power.

8) Data Collection and Analysis System ( 4-point System) - Optional 100% fabric inspection with software for accurate fabric roll analysis and printout.

9) Automatic Linear Cut ( Fabric Roll End Cutter) - Optional Full width cutting at the end of processed roll, fast and accurate.

Optional Parts

<< Defects Recording

4 point system for fabric faults recording, could provide defects report automatically

- standard 24 types of defects

- customized more than 24 types of defects is available

- defects reports could be print out by printer

- common data with code bar print is available

End Cutter >>

Fabric linear end cutter could cross cut fabric roll with smaller diameter per request.

- semi-automatic for safety issue

- cutting thickness:1cm

<< Weighting Device

Automatic weighting device could read fabric roll weight automatically.
- different capacity for choice
- work together with software and printer, could print weight date.


Q1: Is the machine have length counting? In Meter or Yard or Inch?
A1: Yes, Digital Counter Meter is installed on the machine which gives Meter counting or Yard counting.
The desired length also could be pre-set on the digital counter meter. When arrives at pre-set length, machine stops automatically.

Q2: How to feed fabric onto machine? Easy?
A2: Machine layout and drawing of feeding course will be supplied along with machine.

Q3: What is the electrical specs? Can it be used directly in my country?
A3: 3 phase, 380v and 50hz(can be adjusted to suit for different countries)

Q4: Is the control panel in English?
A4: Yes, English version for control panel and relevant operation manuals.

Q5: How long is the warranty? If any problems, how you solve it?
A5: 13 months from the date of shipment. If any quality problems within warranty, Suntech will responsible for it, and send new replacement free of charge.

Q6: Will you provide free spare parts along with the machine?
A6: Yes, 5% to 10% of total value free spare parts will be sent with the machine for your maintenance.

Q7: Can we install it by ourselves? Overseas engineer is available?
A7: The machine will be shipped under assembled base, no need to install again.
