SUNTECH Automatic Textile Shrink Wrapping and Packing Machine

FOB Reference Price:Get Latest Price
US $10,000-20,000 / Sets | 1 Set/Sets Automatic Packing Machine Fabric Bolt (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Automatic Grade:
Automatic
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SUNTECH
Model Number:
ST-CBPM
Voltage:
Single Phase-220V; 50HZ (Customized)
Power(W):
43 KW
Dimension(L*W*H):
2600*1050*1500MM
Weight:
VARY
Certification:
CE , ISO9001:2008
Warranty:
13 months
After-sales Service Provided:
Engineers available to service machinery overseas
Item:
Automatic Packing Machine for Fabrics Bolt
Type:
Fabric Cardboard Bolt Vacuum Packing Machine
Packing Capacity:
5--20 pcs/mins
packing material:
PE Heat Shrink Film
PE Film Width:
600mm
PE Film Thickness:
13-30 Microns
Application:
Apparel,Textiles,Fabric cardboard bolts
Compressed air pressure:
5-7 Bar
Remark:
Range of roll width can be designed &manufactured upto 3200 mm
SupplyAbility
SupplyAbility:
100 Set/Sets per Month Automatic Packing Machine Fabric Bolt
Packaging & Delivery
Packaging Details
Steel Pallet or Wooden Box Packing
SUNTECH Automatic Textile Shrink Wrapping and Packing Machine
Port
Ningbo/Shanghai
Lead Time :
Shipped in 20 days after payment
Product Description

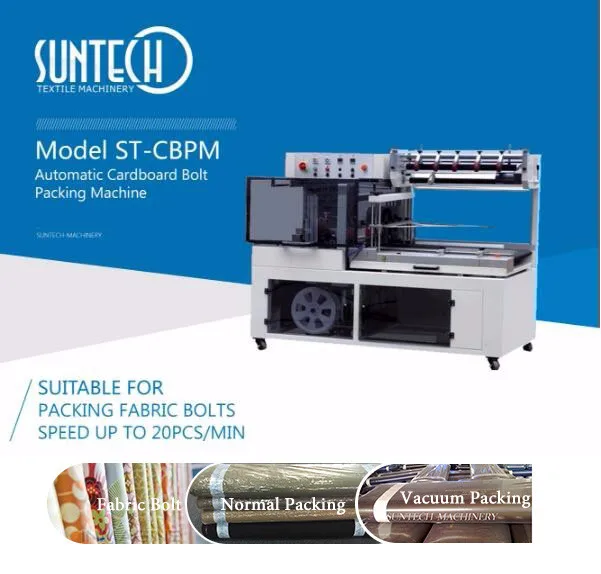

SUNTECH Automatic Textile Shrink Wrapping and Packing Machine

ST-CBPM is used to pack cardboard bolts from the Double Folding&Lapping Machine, which is widely applicable for home textiles, suitings, etc.
- savings labour cost, one operator needed
- saving time, packing speed around 5-20pcs/min
- saving packing material
- good packing effect
- automatic packing proposal available, clarity of goods for customs-inspection, moisture&dust proof packing etc.

Model
ST-CBPM Automatic Shrink Wrapping and Packing Machine
Standard Packing Size
1100*550* 150 mm(L*W*H)
Packing Material
POF film. Film Width:800mm; Thickness:13-30microns
Packing Capacity
5-20 pcs/min
Compressed Air Pressure
5-7 bar
Electric Specs
Single-phase/220V; 50HZ (or per request)
Packing Fabric Roll
YES (small rolls, dia. less than 200mm)

Features:

1) The cardbord bolts could be transported by the inlet conveyor or manually to the main packing unit for

     both width and side sealing through polythene film.


2) The width and diameter of the coming bolts are detected by the intelligent photoelectric sensors, while

     the width and height could be adjusted by handle so as to ensure there will be no polythene film wastage

     during packing.


3) On the completion of side sealing, the packed cardboard bolts could be transferred to the Heat Chamber

     so as to crimp the polythene tightly over the cardboard bolts, which ensures a vacuum packing effect.


4) The complete system is PLC controlled. Easy for operation.


5) Protective Device and Safety Controls are built in the machine; Safe and Reliable.

Detailed Images



>> Heat Chamber

Position: After Packing

Function: Vacuum Packing

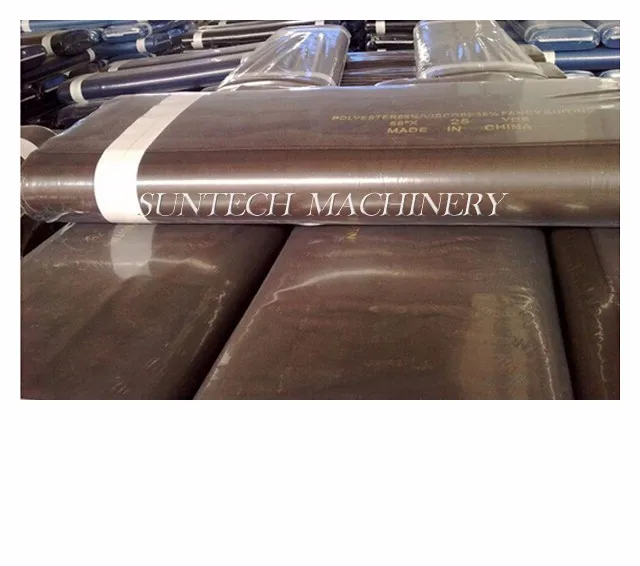

>> Packing Effect.

Function: Cardboard Packing Effect in Vacuum Condition.
Packing & Delivery

Shipped by FCL

Steel pallet + Stretching Film Packing

Shipped by LCL

Wooden Box Packing

FAQS:

Q1:What is the packing material? Can we find it in our market?
A1: It is the most common polythene film with 13-30 microns, very easy to get it in your market.

Q2: What is the packing speed?
A2: Our ST-CBPM can pack 300 to 1200 pcs/hr, which means it can pack 2400 to 9600 pcs/eight hour.

Q3:What is the electrical specs? Can I use the machine directly in my country?
A3: It is 3 phase, 380v and 50hz; we could make it suitable for different countries.

Q4: Is the control panel in English?
A4: Yes, it is in English.

Q5: How long is the warranty? If any problems, how to solve it?
A5: 13 months from the date of shipment. If any quality problems within warranty, SUNTECH
will responsible for it, and send new replacements.

Q6: Will you provide free spare parts along with the machine?
A6: Yes, 5% to 10% free spare parts will be sent with the machine.

Our Clients
About Us
SUNTECH is one of the leading designers & manufacturers on textile machines for weaving & finishing units, especially for Fabric Make-up Machines and Material Storage & Handling Equipment.

Over 40 years experience, SUNTECH now has its brand office in HK and International sales office in Hangzhou. In addition, our factory is located in Ningbo city, Zhejiang, China.

Today,with more than 2500 customers and 6000 installations around the world, SUNTECH now has its agent network in Italy, Germany, Russia, Argentina, Colombia, Peru, Ecuador, Guatemala, Indonesia, Thailand, Philippines, India, Pakistan, Bangladesh, Sri Lanka, Uzbekistan, Iran,Egypt, South Africa, Syria, Mauritius, etc.
