Quick Details

  • Condition: New
  • Automatic Grade: Automatic
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SUNTECH
  • Model Number: ST-TFIM
  • Voltage: Single Phase / 220V; 50HZ (can be adjusted as countries)
  • Power(W): KW
  • Dimension(L*W*H): 2300X1700X2070mm
  • Weight: 400kgs
  • Certification: Ce Certificates
  • Warranty: 13 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Type: Tubular Knits Fabric Inspection and Winding Machine with Mirror
  • Free of Charge Spare Parts: 5%-10% of total value
  • Speed: 0-50 m/min
  • Fabric Width: 450-1250 mm(18''--50'')
  • Standard Roll Diameter: 500 mm
  • Machine Type: Fabric Checking Machine
  • Function: Double face inspecting and rolling up tubular fabrics
  • Remark: Variable working width is possible can be made as your requirements
  • Application: Knitting/Finishing& Dyeing/Garment Factory
  • Quality: Long service life and gurantee quality

Packaging & Delivery

Packaging Details Steel Pallet or Wooden Box Packing for SUNTECH Two Side Fabric Inspecting and Rolling Machine
Delivery Time 35days upon receiving payment
Product Description

SUNTECH Two Side Fabric Inspecting and Rolling Machine

ST-TFIM is specially designed for easy and efficiency inspect to both sides of tubular fabric in single pass operation. The Fabric is loaded and pass to the fabric checking box, through two mirrors, the operator can easily check both side of Fabric. This machine can be supplied to operate fabrics from roll to roll or plait, or with various other fabric inlet and outlet options.


*Ergonomically designed
*Fast and easily handle,requiring for one operator only
*Improve fabric quality
*Synchronize production process
*Provide objective quality reporting
*Reduce administration

Model
ST-TFIM
Fabric Width
450-1250mm
Speed
0-50m/min
Standard Roll  Diameter
500mm
Weight
800Kgs
Electric Specs
Single Phase-220V; 50Hz(can be adjusted to suit for different countries)
Remark
Variable or customized working width is available

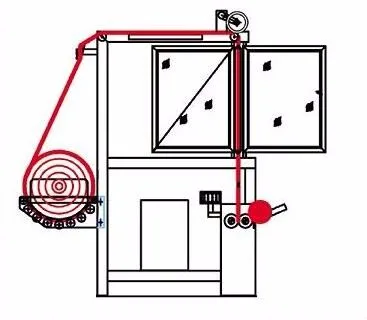

Option A: Roll - Roll

Suitable for tubular fabric  from roll to roll

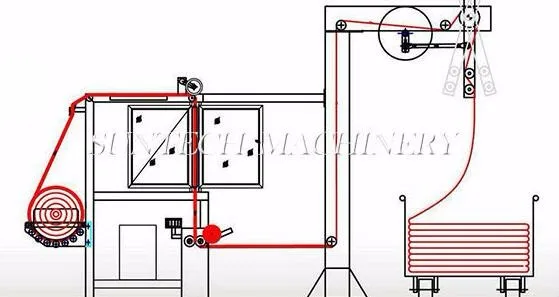

Option B: Roll-Roll/Plait

Suitable for tubular fabric from roll to roll/plait

Main Features:

1) Fabric rolling drawer

with upper delivery mode lessen fabric tension and more convenient for inspection.

2) The inspecting speed controlled by inverter as requirement

3) High voltage dispenser for lightening system
This special device provides electricity Power to the Fabric Checking Box wireless.

4) Multi-size inspecting lightening cabinets from width 18''~48'' for requirements of various fabric
This special Box installed Magnetic Block in the bottom to suspension automatically against the roller to eliminate crease marks to fabric.

5) Two modes of fabric layout - rolling or plaiting for option

6) Easy Operation Panel

Only few push buttons to run the machine smoothly

7) Remote Foot Pedal for convenient operation

Detailed Images

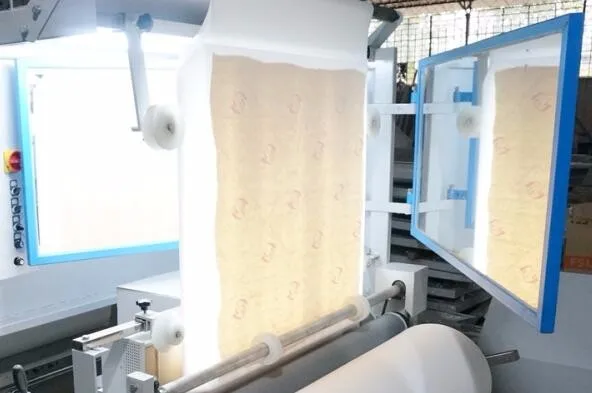

<< Two mirrors

Two mirrors for operator checking double sides in one process.

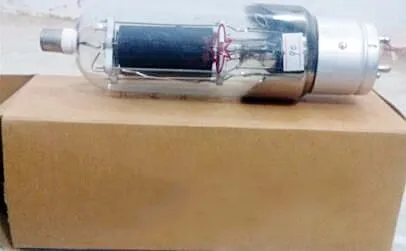

Emission Bulb >>


Emission bulbs are in high voltage dispenser for lighting system.

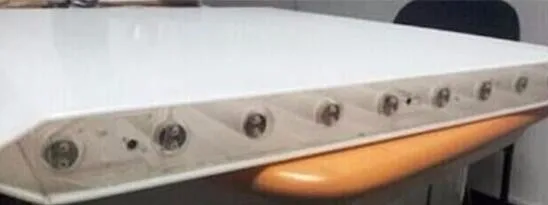

<< Light box
The special box installed magnetic block in the bottom to suspension automatically against the roller to eliminate crease marks to fabric.

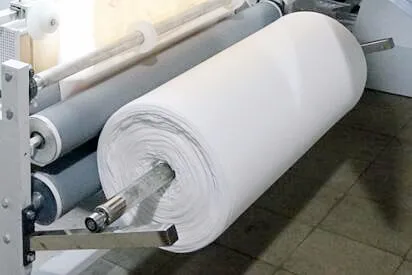

Rewinding >>

Two rewinding roller help fabric rewinding with standard diameter 500 mm. ( customized diameter available )



Packing & Delivery

FAQS:

Q1: Are you a trading company or manufacture?
A1: SUNTECH is a professional manufacturer with experience over 40 years. Now we have brand office in
       HK and International sales office in Hangzhou(Hangzhou Strength Machinery Co.,Ltd). Your order will be
       controlled from very beginning to the last.

Q2: What is your delivery time?
A2: Normally 15-20 days upon order confirmation.

Q3: What is your packing pattern?
A3: For FCL, steel pallet + stretch film covering
       For LCL, steel frame + wooden box packing

Q4: How about your service?
A4: Round the clock customer service center- 24 hours hot line--13706812486.
       Also, engineers available to service machinery overseas

Q5: How about your product?
A5: SUNTECH has the standard production and complete quality control system to ensure high quality
       products. Our products get ISO9001:2008, Euro CE.

Related Products

ST-KFIM-01

Open Width Knitted Fabric Inspecting and Winding Machine

ST-SFIM

Simple Fabric Inspection Machine for Textile Industry

ST-WFIM

Automatic Batching Fabric Perching Rolling Inspection Machine

Our Clients
About Us
SUNTECH is one of the leading designers & manufacturers on textile machines for weaving & finishing units, especially for Fabric Make-up Machines and Material Storage & Handling Equipment.

Over 40 years experience, SUNTECH now has its brand office in HK and International sales office in Hangzhou. In addition, our factory is located in Ningbo city, Zhejiang, China.

Today,with more than 2500 customers and 6000 installations around the world, SUNTECH now has its agent network in Italy, Germany, Russia, Argentina, Colombia, Peru, Ecuador, Guatemala, Indonesia, Thailand, Philippines, India, Pakistan, Bangladesh, Sri Lanka, Uzbekistan, Iran,Egypt, South Africa, Syria, Mauritius, etc.
