Quick Details

  • Condition: New
  • Automatic Grade: Automatic
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SUNTECH
  • Model Number: ST-HRM
  • Voltage: 220V
  • Power(W): 1500
  • Dimension(L*W*H): 223*26*1.35m (per model)
  • Weight: 600kgs (ST-HRM-180 only)
  • Certification: CE, ISO
  • Warranty: 13 month
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Type: Horizontal Rolling Machine
  • Working width: 1000-4000MM
  • Rolling Speed: 9-90 m/min (Stepless)
  • Max fabric roll Dia.: standar 500mm (or per request)
  • Feature: Economic and compact
  • Ideal for: fabric dealer
  • Length measuring: YES (digital counter meter)
  • Inspection function: Optional
  • Fabric type: All kinds of fabric

Packaging & Delivery

Packaging Details Steel Pallet or Wooden Box Packing for rolling machine
Delivery Time Shipped in 25 days after payment
Product Description

SUNTECH Textile Fabric Rolling Machine

   ST-HRM is ideal for fabric for unwinding, measuring and rewinding.It's suitable for all kinds of fabric, like knitted fabric, woven etc. Compact structure especially is desinged for the fabric retailer or distributor. Inspection fuction can be added as per customer's requirement.
Model
ST-HRM
Speed
0-90m/min
Fabric width
1.6-4.0meter
Standard roll diameter
500mm
Weight
600kgs
Electric specs
3 phase-380v;50Hz(can be adjusted to suit for different countries)
Remark
variable working width is possible and can be tailor-made to your requirements of processing needs

main features:


1. Consistent Roll Output - with Twin Rewinding Roller and Roll Hardness Adjustment;

2. Accurate Fabric Length and Optional Weighing Machine

Fabric roll length and weight can be taken by industrial standard measuring systems with digital readouts to give consistent fabric roll assessments;

3. Linear Fabric Roll End Cutter - Optional

Full width cutting at the end of processed roll, fast and accurate.


Detailed Images

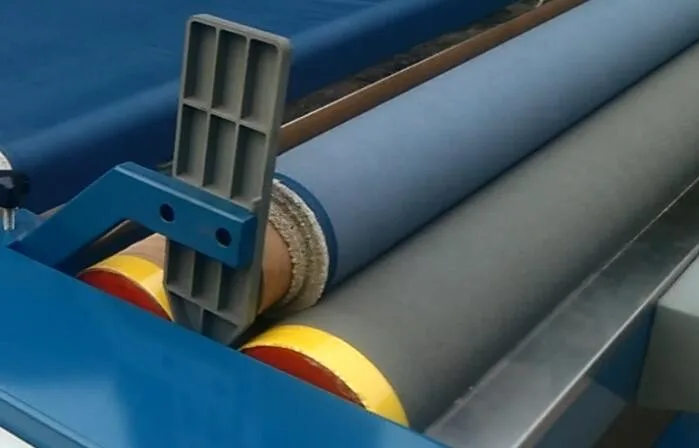

Twin Rewinding Roller

Consistent roll output by actively surface rewinding with twin rubber-covered roller.
The roll compact could be adjust due to different ratio of the rollers. You could adjust the roll hardness (Loose or Tight) through the hand-wheel.
Digital Counter Meter
Meter(M) and Yard(YD)can be chosen to read out.
Also the Digital Counter Meter also have the pre-set function. Means if you need 100 m, you pre-set the length on the counter meter. When arrives 100m, the machine will stop automatically

Rolling speed can be adjusted by the button on operation screen.

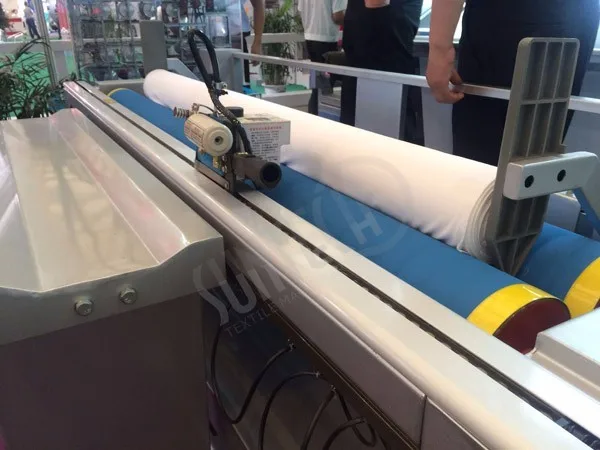

Semi-automatic Fabric End Cutter(Optional)

Full width cutting at the end of processed roll, fast and accurate.

Packing & Delivery

Shipped by FCL

Steel pallet + Stretching Film Packing

Shipped by LCL

Wooden Box Packing

FAQS:


Q1: Is the machine have length counting? In Meter or Yard or Inch?
A1: Yes, Digital Counter Meter is installed on the machine which gives Meter counting or Yard counting.

       The desired length also could be pre-set on the digital counter meter. When arrives at pre-set length,

        machine stops automatically.

Q2: What is the electrical specs? Can it be used directly in my country?
A2: 3 phase, 380v and 50hz(can be adjusted to suit for different countries).

Q3: Is the control panel in English?
A3: Yes, English version for control panel and relevant operation manuals.

Q4: How long is the warranty? If any problems, how you solve it?
A4: 13 months from the date of shipment. If any quality problems within warranty, Suntech will responsible for it,

        and send new replacement free of charge.

Q5: Will you provide free spare parts along with the machine?
A5: Yes, 5% to 10% of total value free spare parts will be sent with the machine for your maintenance.

Q6: Can we install it by ourselves? Overseas engineer is available?
A6: The machine will be shipped under assembled base, no need to install again.
