SUNTECH Economic Cloth Fabric Inspection and Rolling Machine

FOB Reference Price:Get Latest Price
US $2,500-6,500 / Sets | 1 Set/Sets Fabric Inspection Machine (Min. Order)
Report Suspicious Activity
Quick Details
Automatic Grade:
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Model Number:
3 phase-380V; 50HZ (Adjustable)
As Per Special Model
3050X2630X2430mm(FOR ST-WFIM-180 ONLY)
CE, ISO9001:2008
13 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Free of Charge Spare Parts::
5%-10% of total value
Fabric Inspection Machine
Standard Roll Diameter:
Variable working width is possibel
Shipping term:
100 Set/Sets per Month Fabric Inspection Machine
Packaging & Delivery
Packaging Details
Steel Pallet or Wooden Box Packing
SUNTECH Economic Cloth Fabric Inspection and Rolling Machine
Lead Time :
Shipped in 30 days after payment
Product Description

SUNTECH Economic Cloth Fabric Inspection and Rolling Machine

Product Application

SUNTECH Woven Fabric Inspection Machine is suitable for woven and denim fabric checking. Also suitable for knitted fabric with little stretch without curled-edges.

This machine can be supplied to operate from various fabric inlet and outlet options.

It has the accurate fabric length and fabric edge controlling and optional data collection and analysis system.

Fabric Width
Rolling Speed
Standard Roll Diameter
1000kg(for standard model ST-WFIM-180 only)
Electric Specs
3Phase-380V; 50Hz(can be adjusted to suit for different countries)
Variable working width is possible and can be tailor-made to your requirements of processing needs.

Excellent Features:

1) End of Fabric Roll Automatic Stop Sensor - for Next Roll Joining. This will allow for continuous fabric inspection,

     from one piece of roll to next.
2) Full Width Fabric Inspection - with 30 Degree Fixed Angle Inspection Screen.

     Fabric can be checked under the aid of different viewing and lighting options.

3) Accurate Fabric Length and Optional Weighing Machine.
4) Accurate Fabric Edge Controlling with Edge Alignment Photo-Sensor for perfect roll generation.
5) Consistent Roll Output - with Twin Rewinding Roller and Roll Hardness Adjustment.
6) Various Fabric Input and Output Options - Synchronize with Other Production Operations.
7) Selvedge Shifting Device (Optional) - Ideal for for Thick/ Sulzer Selvedges.
8) Data Collection and Analysis System ( 4-point System) - Optional 100% fabric inspection.
     with software for accurate fabric roll analysis and printout.
9) Linear Fabric Roll End Cutter(Optional).

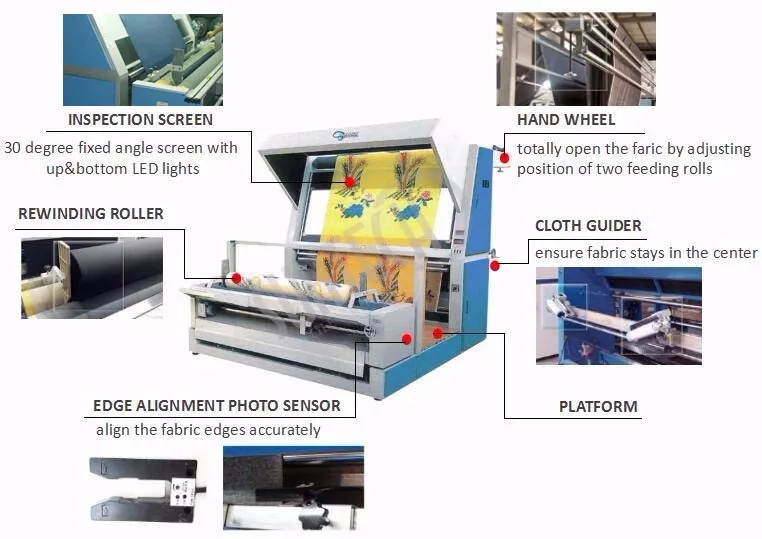

Detailed Images

SUNTECH Economic Cloth Fabric Inspection and Rolling Machine

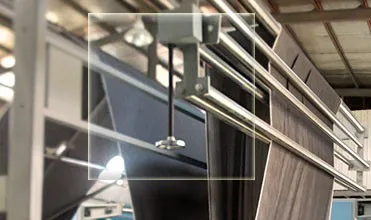

Hand Wheel

Hand Wheel at fabric feeding place, which could totally open the fabric through adjusting the position of two feeding rollers.

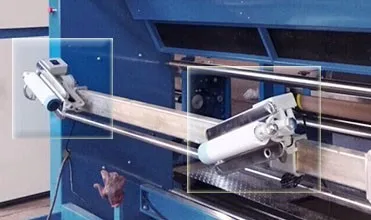

Cloth Guider

Make sure that fabric stays in the center of machine. When fabric running deflected, Cloth Guider will correct it automatically.

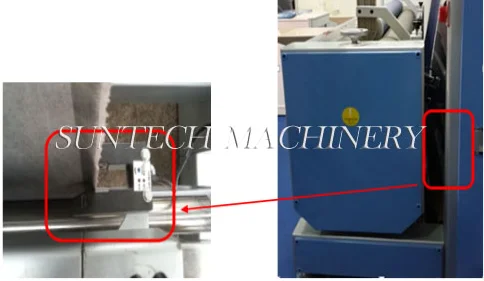

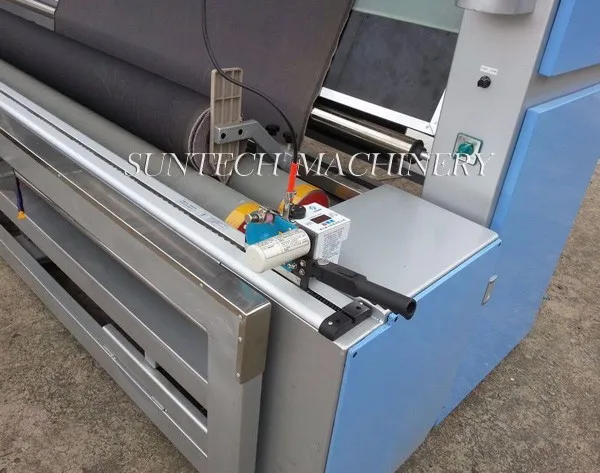

Edge-alignment Sensor

Edge Alignment Photo Sensor will align the fabric edges accurately. When fabric declines, the rewinding station will move left or right for aligning.

Twin Rewinding Roller

Consistent roll output by actively surface rewinding with twin rubber-covered roller.
The roll compact could be adjust due to different ratio of the rollers. You could adjust the roll hardness (Loose or Tight) through the hand-wheel.

Packing & Delivery

Shipped by FCL

Steel pallet + Stretching Film Packing

Shipped by LCL

Wooden Box Packing


Q1: Are you a trading company or manufacture?
A1: SUNTECH is a professional manufacturer with experience over 40 years. Now we have brand office in HK

       and International sales office in Hangzhou(Hangzhou Strength Machinery Co.,Ltd).

       Your order will be controlled from very beginning to the last.

Q2: What is your delivery time?
A2: Normally 15-20 days upon order confirmation.

Q3: What is your packing pattern?
A3: For FCL, steel pallet + stretch film covering.
       For LCL, steel frame + wooden box packing.

Q4: How about your service?
A4: Round the clock customer service center- 24 hours hot line--13706812486.
       Also, engineers available to service machinery overseas

Q5: How about your product?
A5: SUNTECH has the standard production and complete quality control system to ensure high quality products.

       Our products get ISO9001:2008, Euro CE.

About Us
SUNTECH is one of the leading designers & manufacturers on textile machines for weaving & finishing units, especially for Fabric Make-up Machines and Material Storage & Handling Equipment.

Over 40 years experience, SUNTECH now has its brand office in HK and International sales office in Hangzhou. In addition, our factory is located in Ningbo city, Zhejiang, China.

Today,with more than 2500 customers and 6000 installations around the world, SUNTECH now has its agent network in Italy, Germany, Russia, Argentina, Colombia, Peru, Ecuador, Guatemala, Indonesia, Thailand, Philippines, India, Pakistan, Bangladesh, Sri Lanka, Uzbekistan, Iran,Egypt, South Africa, Syria, Mauritius, etc.
