Quick Details

  • Condition: New
  • Application: Fabric Sample Cutting
  • Automatic Grade: Automatic
  • Production Capacity: 100 Sets/month
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SUNTECH
  • Model Number: ST-MSCM
  • Voltage: 220-240V; 50Hz
  • Power(W): 1.5KW
  • Dimension(L*W*H): 85*70*105CM
  • Weight: 135KGS
  • Features: Automatic
  • Certification: CE, ISO9001:2008
  • Warranty: 13 Months, 24 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Knife Length: 500mm(19-1/2'')
  • Stroke: 60mm(2'')
  • Cutting Blade Hardness: HRC 63-65
  • Remark: Varible blade length available as your cutting need
  • Blade type: Zig-zag or Flat(straight)

Packaging & Delivery

Packaging Details Steel Pallet or Wooden Box Packing for SUNTECH Automatic Fabric Textile Sample Swatch Cutting Machine
Delivery Time Shipped in 15 days after payment
Product Description

SUNTECH Automatic Fabric Textile Sample Swatch Cutting Machine

    ST-MSCM is used to cut fabric samples with attractive zig-zag or flat edges.

*Effortless cutting of any fabric quality-far superior to hand operated machines.
*Precise and accurate thanks to right angle guide with millimeter graduation.
*Easy to operate, fast and powerful.
*Safe, two-hand operated.
*Hand lever for manual table lift, motives and patterns can be accurately aligned prior to cutting.
*Mobile, ready to use anywhere.
*Reliable and maintenance-free.
*Unmatched price.

Model
ST-MSCM
Item Name
Motorized Fabric Swatch Sample Cloth Cutting Machine
Fabric Type
All Fabrics
Drive
Motorized
Range of Cutting Width
500-1000mm
Cutting Height
50mm
Stroke
60mm
Cutting Blade Type
Zig-zag or Flat(Straight)
Cutting Blade Hardness
HRC63-65

Excellent Features:

1) Zig-zag Serrated Blade. Durable alloy steel zig-zag serrated blade for attractive blades.
2) Long Life Cutting Mat. A cutting mat is included for preventing the blade from damage during the cutting operation.

3) Scaled Cutting Table. Cutting table is scaled on one side to allow the operator to decide the size of cut conveniently

     and accurately.
4) Adjustable Cutting Board. Equipped with an easy turn wheel for moving the cutting board forward to the

      next cutting position.

Detailed Images

Warranty Extension is Available at SUNTECH Than Other Suppliers.

Metallic Paint( used for Luxury Imported Cars):
* A Seriously Cool Effect-- Glimmer and Sparkle.
* More Resistant to Fading--Longevity.
* More Hardness than Ordinary Paint--Protect From Damage or Scratches.



Preventer

The preventer can protect your safety during cloth cutting.

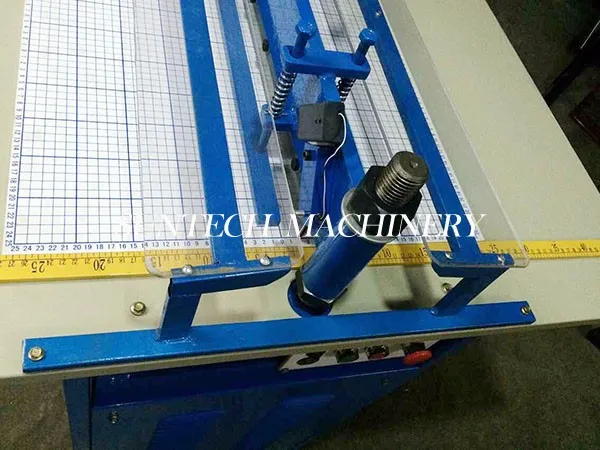

Scale

The scale help to measure the cutting sample size you need.

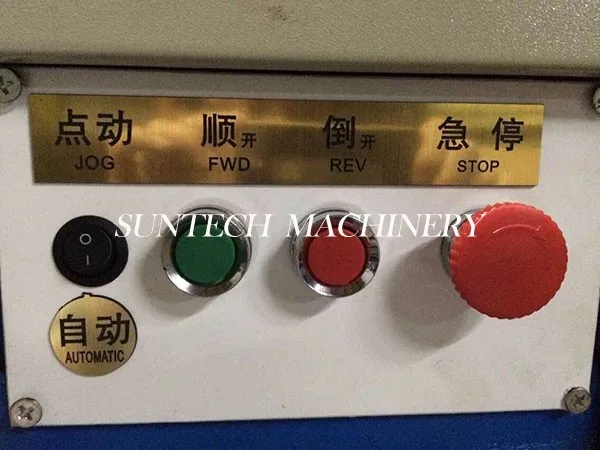

Operation Panel

1.When you choose "JOG", the blade will be controlled by yourself;
a. Press down "FWD", the blade move down; Stop press "FWD", the blade stop move;
b. Press "REV", the blade up; Stop press "REV", the blade stop move;
2.When you choose "AUTOMATIC", the blade will be directly cut down the sample without stop even you push "FWD" or "REV";
3.When you turn right the "STOP" button, the machine stop.




Removable Wheel(Option)

We also can help you to install wheel assembly to help move conveniently.

Packing & Delivery

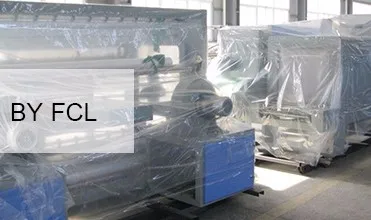

Shipped by FCL

Steel pallet + Stretching Film Packing

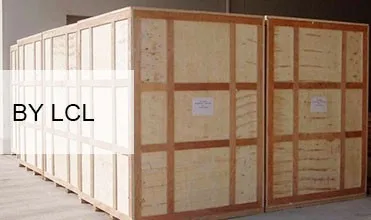

Shipped by LCL

Wooden Box Packing

FAQS:

Q1: Are you a trading company or manufacture?
A1: SUNTECH is a professional manufacturer with experience over 40 years. Now we have brand office in
       HK and International sales office in Hangzhou(Hangzhou Strength Machinery Co.,Ltd). Your order will be
       controlled from very beginning to the last.

Q2: What is your delivery time?
A2: Normally 15-20 days upon order confirmation.

Q3: What is your packing pattern?
A3: For FCL, steel pallet + stretch film covering
       For LCL, steel frame + wooden box packing

Q4: How about your service?
A4: Round the clock customer service center- 24 hours hot line--13706812486.
       Also, engineers available to service machinery overseas

Q5: How about your product?
A5: SUNTECH has the standard production and complete quality control system to ensure high quality
       products. Our products get ISO9001:2008, Euro CE.
