Quick Details

  • Condition: New
  • Automatic Grade: Automatic
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SUNTECH
  • Model Number: ST-BM-01
  • Voltage: 3 Phase-380V,50HZ(adjustable)
  • Power(W): Special Model
  • Dimension(L*W*H): 4370*2350*2210mm(for model ST-BM-01-180 only)
  • Weight: 1300kgs(for model ST-BM-01-180 only)
  • Certification: CE ISO9001
  • Warranty: 13 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Material Type: Steel
  • Machinery: Auto Batcher Inspect & Rewind Machine
  • Speed: 5-50m/min
  • Fabric Width: 1.8-4.0 m
  • Max. Un-winding Diameter: 1500m
  • Max. Re-winding Diameter: 500m

Packaging & Delivery

Packaging Details Steel Pallet or Wooden Box Packing

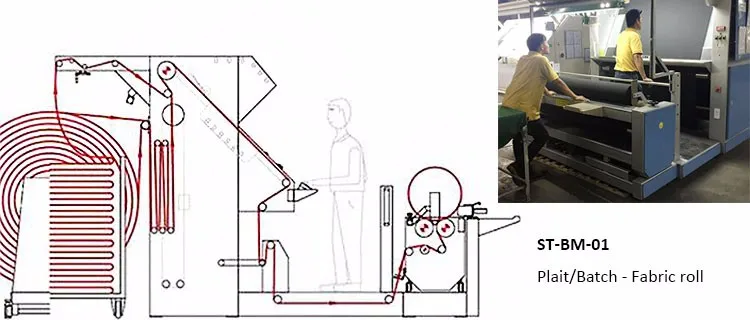

SUNTECH ST-BM-01 Auto Batcher Inspect & Rewind Machine
Delivery Time 15-20 days
Product Description

Product Application

ST-BM-01 is suitable for a wide range of fabrics, especially for continuous process from A-frame Batch to small rolls. This machine can provide synchronized fabric input or output to A-frame, with constant tension control. Peripheral fabric contact for delicate or heavy duty fabrics.

*Ergonomically designed
*Fast and easily handle,requiring for one operator only
*Improve fabric quality
*Synchronize production process
*Provide objective quality reporting
*Reduce administration

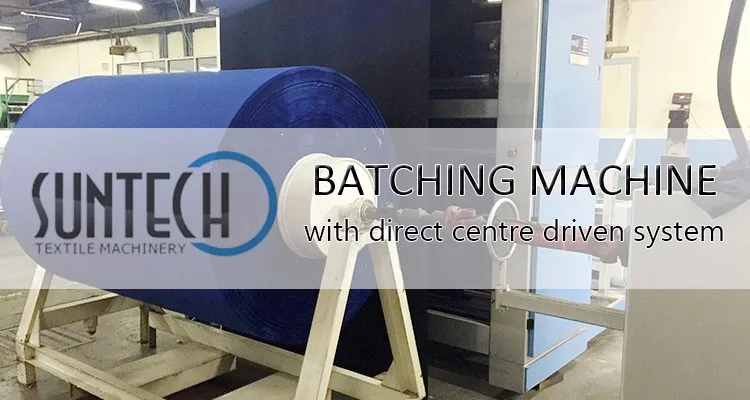

SPECIFICATIONS FOR BATCHING MACHINE WITH DIRECT CENTRE DRIVEN SYSTEM
Speed
5-50m/min
Fabric Width
1.8-4.0m
Max. Un-winding Diameter
1500mm
Max. Re-winding Diameter
500mm
Dimensions(LxWxH)
4370x2350x2210mm(for model ST-BM-01-180 only)
Weight
1300kgs(for model ST-BM-01-180 only)
Electric Specs.
3phase-380V/50Hz (or customized per request)
Remark
Variable and customized working width is available

Main Features

1)Direct Centre Driven System for un-winding
- " A" frame fabric is unwound from non-contact center drive system, especially ideal for checking delicate or heavy duty fabrics.

2)Fabric Input, Output Synchronized- for Tensionless Roll up
- Speed is controlled by an adjustable light accumulation rollers for automatic fabric synchronization.

3)Full Width Fabric Inspection - with 60 Degree Fixed Angle Inspection Screen
- Fabric can be checked under the aid of different viewing and lighting options.

4) Accurate Fabric Length Measuring
- Fabric roll length can be taken by industrial standard measuring systems with digital readouts to give consistent fabric roll assessments.

5)Stable Running & Easy Operation
- The whole machine is controlled by PLC and the machine can be easily operated with optional Touch Screen.

6)Stretch Fabric Control - with Scroll Roller System and Optional De-curling System.
Fabric control at all times to generate consistent roll width and edge output.

7)Versatile Fabric Input and Output Options

8)Synchronize with Other Production Operations-----Optional
systems are available for different fabric input and output presentations, continuous fabric input and plait input or output.

9)Data Collection and Analysis System ( 4-point System) ---- Optional.
100% fabric inspection with software for accurate fabric roll analysis and printout.
Detailed Images

SUNTECH Excellent Features

1. Warranty Extension is Available at SUNTECH Than Other Suppliers.

2. Metallic Paint( used for Luxury Imported Cars):
* A Seriously Cool Effect-- Glimmer and Sparkle.
* More Resistant to Fading--Longevity
* More Hardness than Ordinary Paint--Protect From Damage or Scratches
3. Top & Bottom Lights: LED Lights
* Long Life--Ordinary Light Average 1000-20000 hours, LED light 50000 hour life
* Energy Efficiency--Save 80% than Ordinary Lights
* Ecologically Friendly--Green Solution
* Zero UV Emissions
* Operational in Extremely Cold or Hot Temperatures

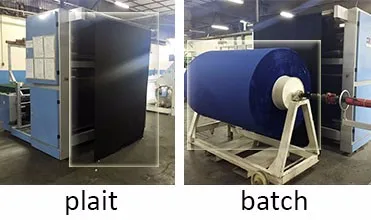

>> Inlet Form

Optional: plait fabric or A-frame batch

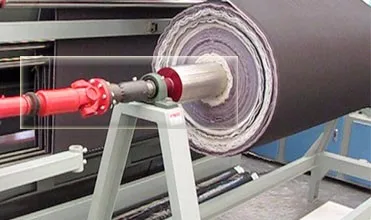

Tension Control <<

Item: Center driven system
Function: it is motor driven, help batch from non-contact active unwinding. Ideal for delicate or heavy duty fabrics.

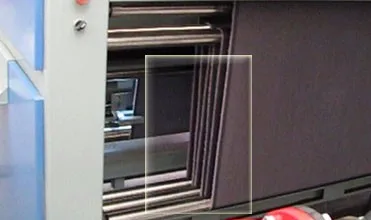

>> Tension Control

Item: Roller Accumulator
Function: speed is controlled by an adjustable light roller accumulator, to ensure input and output speed synchronized automatically.

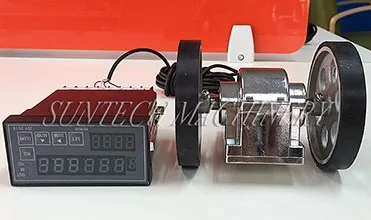

Length Measuring <<

Position:
After folding, before rewinding
Function: digital counter meter and wheel type encoder work together for length measuring.
- pre-set length available
- yard/meter unit optional
- error ≤6 mm

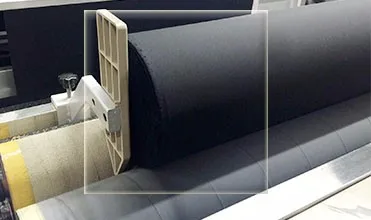

>> Rewinding

Item:
Twin rewinding roller
Function: Motor driven for fabric roll rewinding. Could control roll rewinding tight or loose.

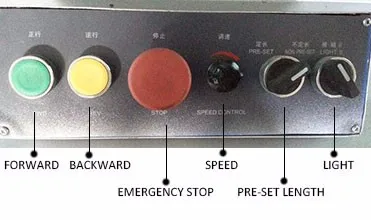

Operation Panel <<

Button: Forward/backward, emergency stop button, speed control button, button to choose pre-set length or not, light button.



Packing

Shipped by FCL

Steel pallet + Stretching Film Packing

Shipped by LCL

Wooden Box Packing

FAQ

Q1: Is the machine have length counting? In Meter or Yard or Inch?
A1: Yes, Digital Counter Meter is installed on the machine which gives Meter counting or Yard counting.
The desired length also could be pre-set on the digital counter meter. When arrives at pre-set length, machine stops automatically.

Q2: How to feed fabric onto machine? Easy?
A2: Machine layout and drawing of feeding course will be supplied along with machine.

Q3: What is the electrical specs? Can it be used directly in my country?
A3: 3 phase, 380v and 50hz(can be adjusted to suit for different countries)

Q4: Is the control panel in English?
A4: Yes, English version for control panel and relevant operation manuals.

Q5: How long is the warranty? If any problems, how you solve it?
A5: 13 months from the date of shipment. If any quality problems within warranty, Suntech will responsible for it, and send new replacement free of charge.

Q6: Can we install it by ourselves? Overseas engineer is available?
A6: The machine will be almost assembled, you just need simple installation. Your techincian could deal with it.
